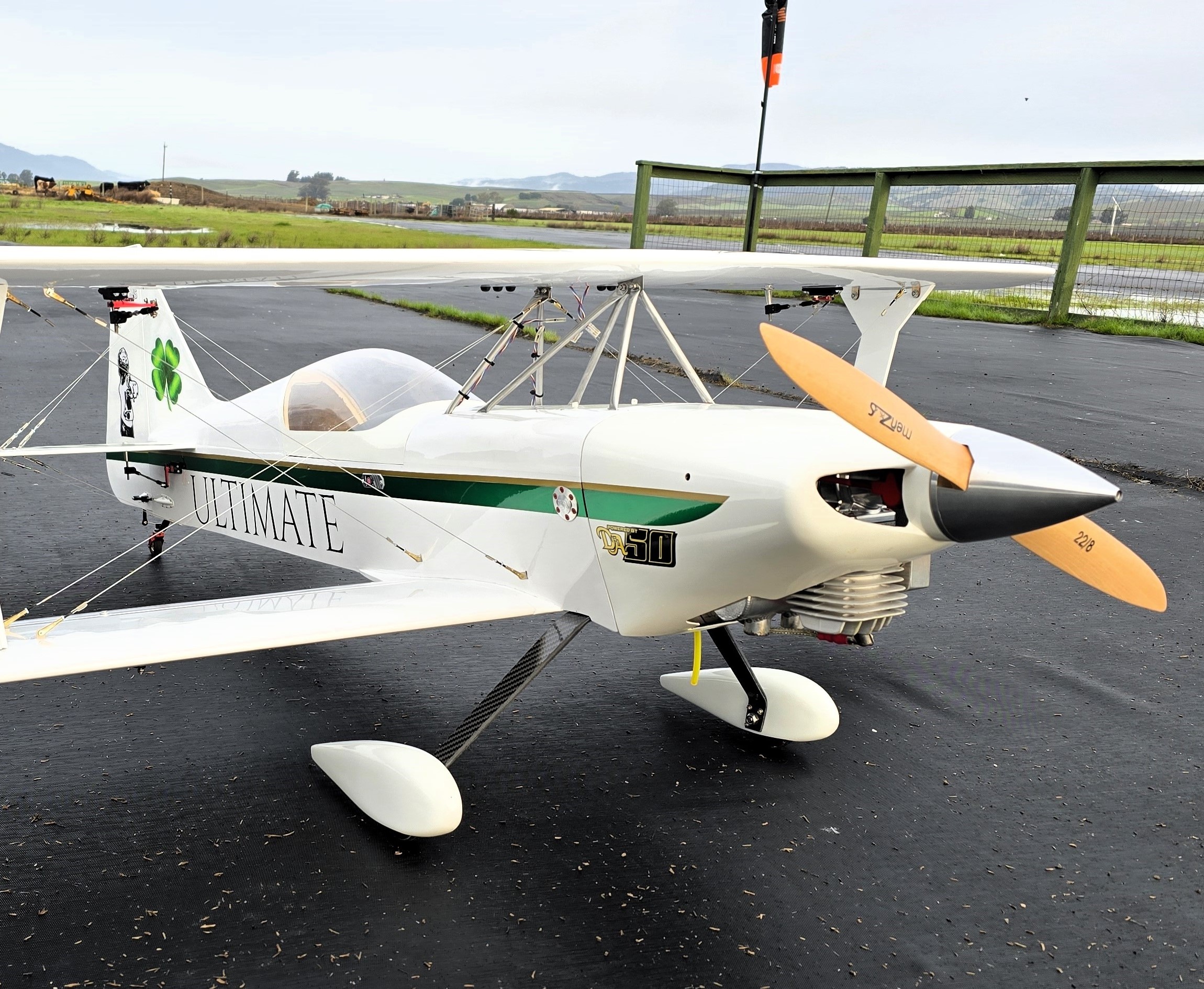

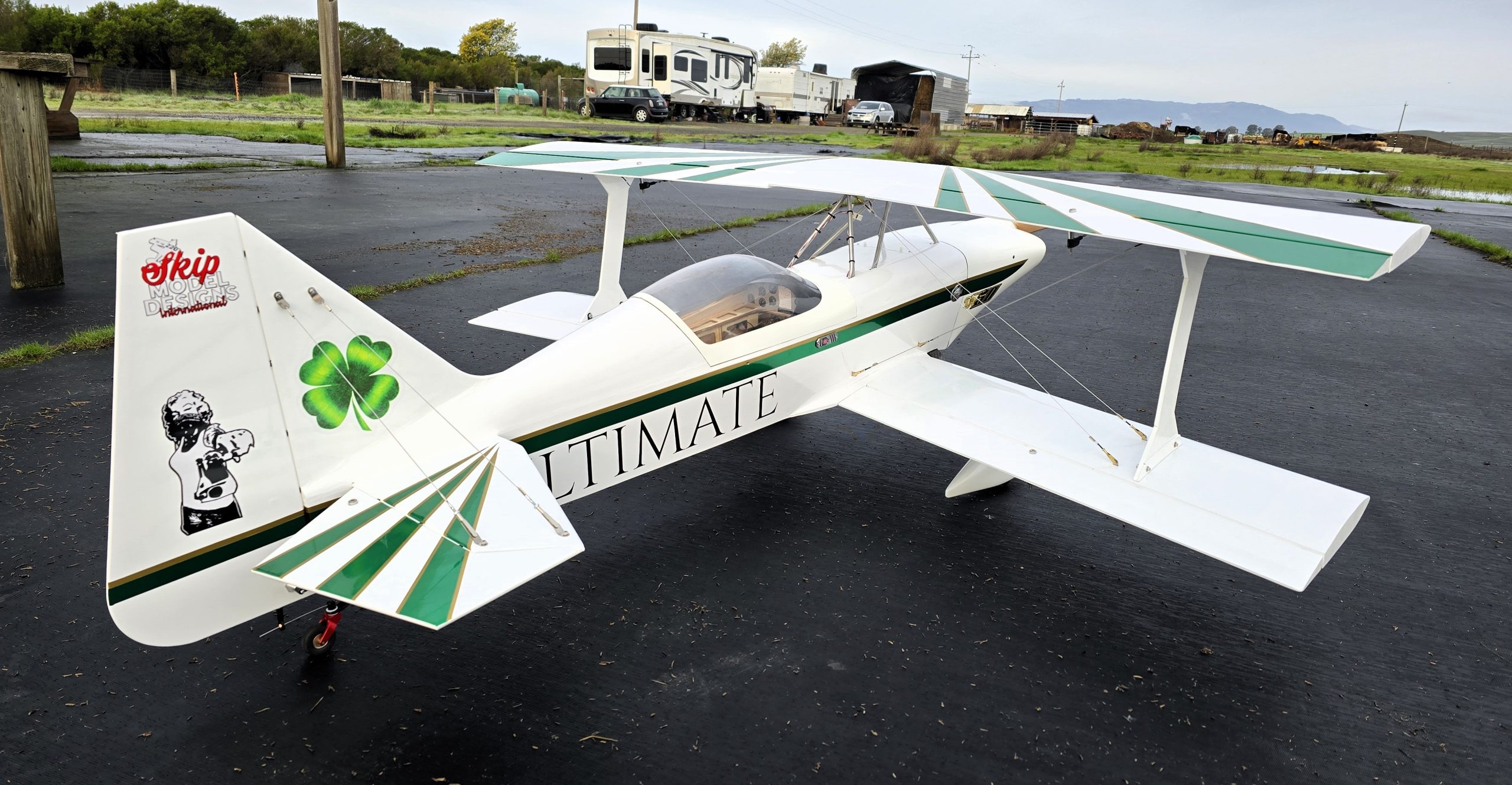

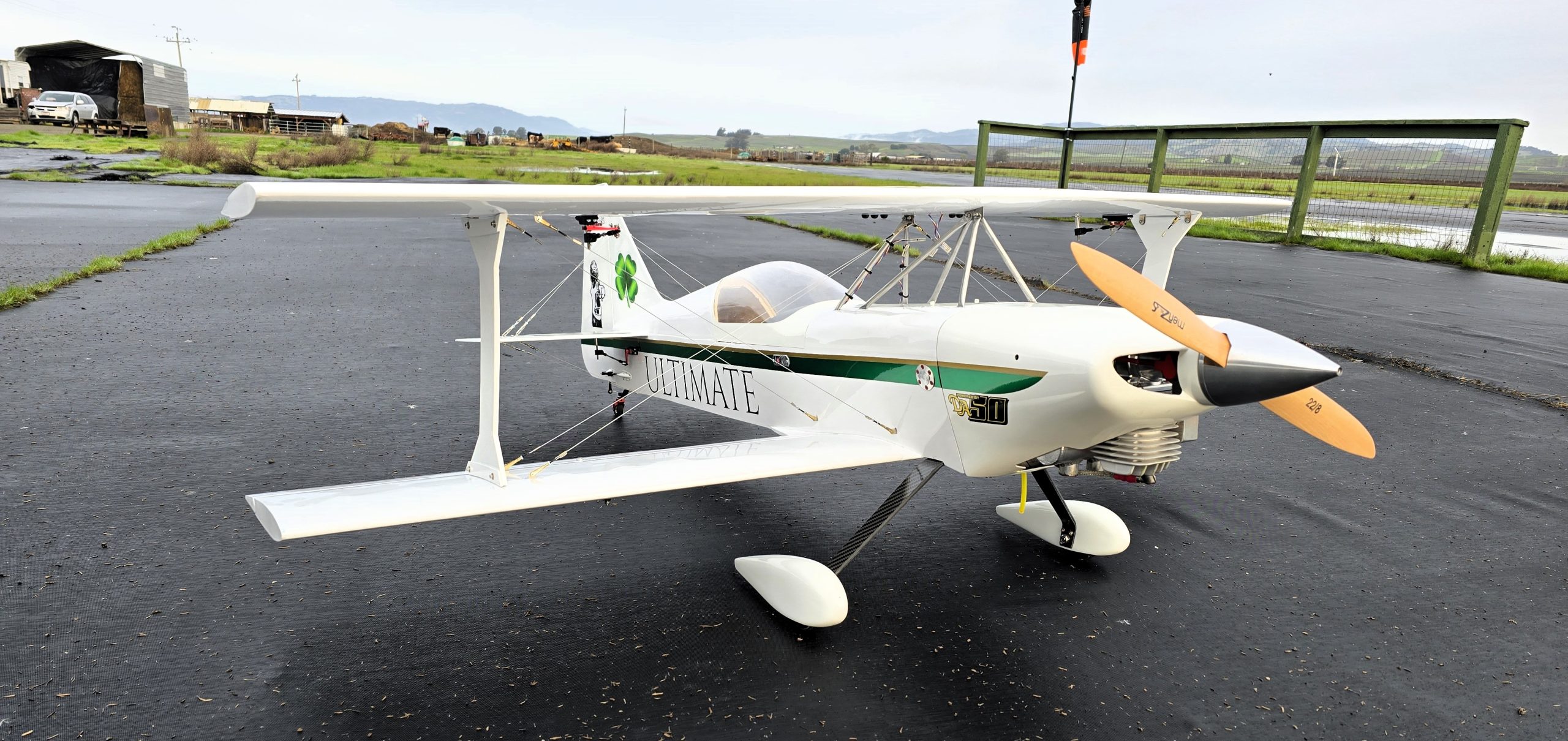

28% Ultimate 10-300 – Short Kit

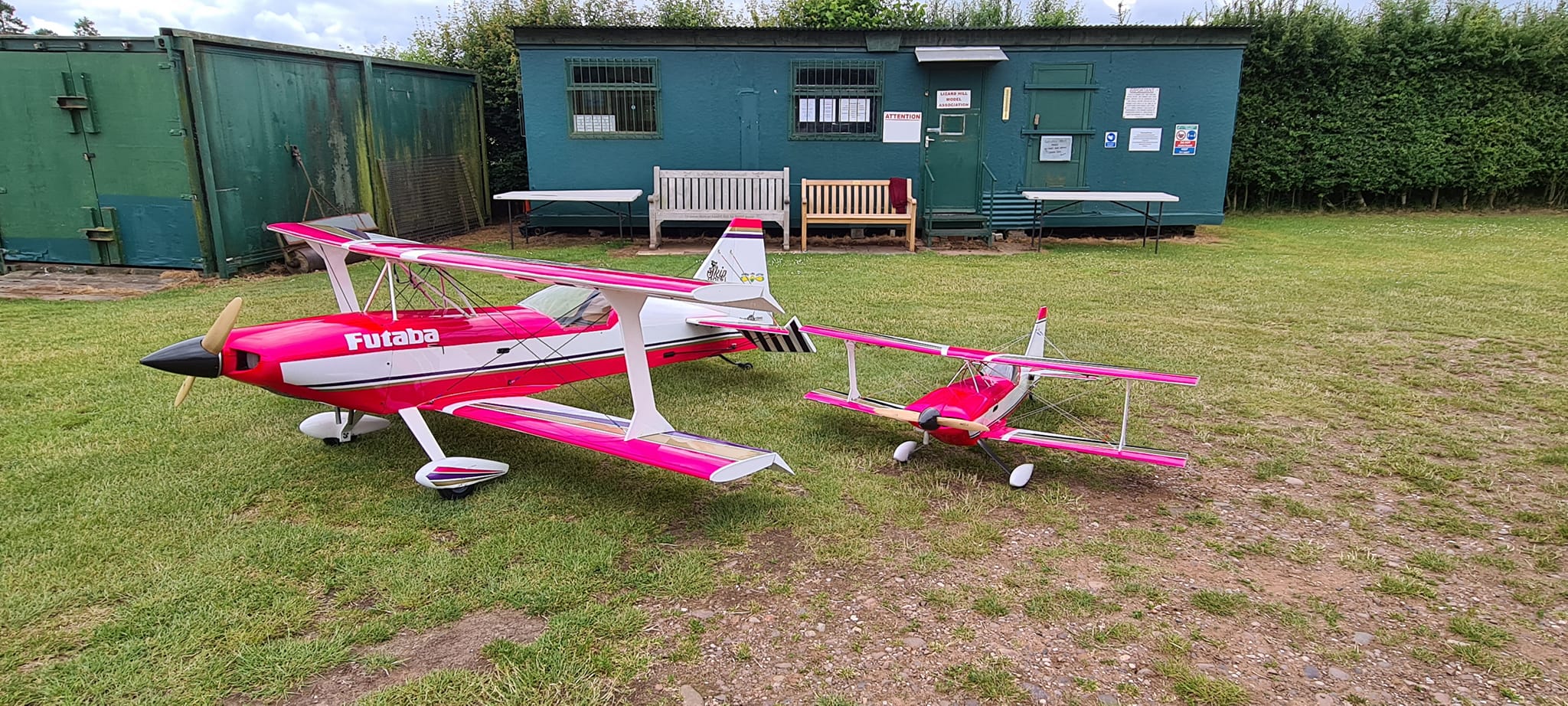

New for 2023 the 28% Ultimate, The Baby brother of the 41% model, The 28% Model employs the latest in design Elements and innovative construction, To Bring a model of high strength, Rigidity and Low weight.

Due to the Ultimate’s Design of a Long tail Moment, Super light weight construction & correct airfoil, The ultimate is the choice for Precision (Imac) flying but also extremely capable at low and slow 3D flying.

The Ultimate from SMD is the pinnacle of the biplane platform and is an amazing all round model that will not disappoint!

Features:

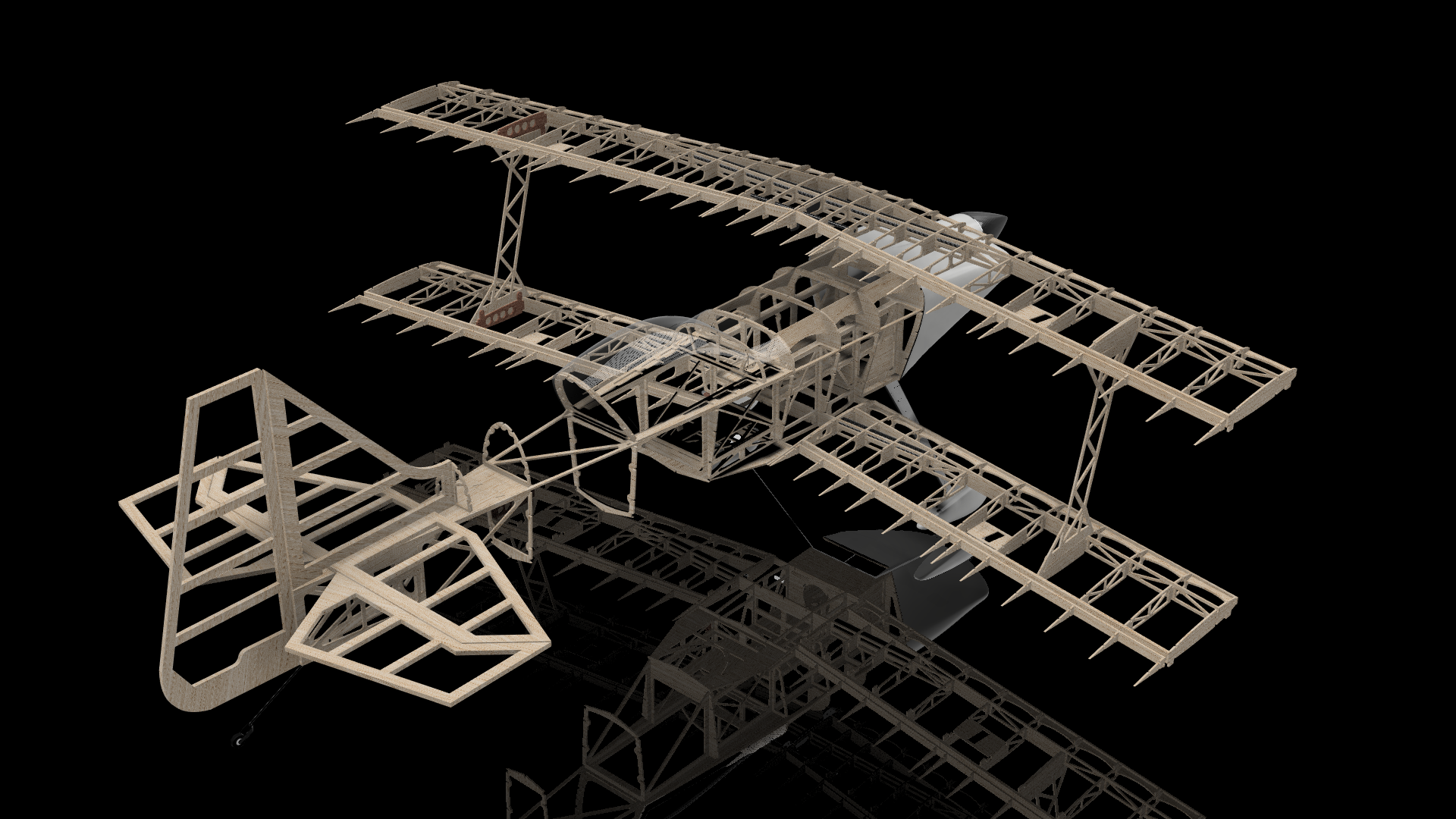

• High level of interlocking construction, For quick, accurate building & Strength
• Full interlocking built up Balsa tail for strength and Low weight.
• Cable path in aft of Fuselage for servo wires
• Fuel tank, ignition & Battery tiedown points
• Built in Canister Muffler Mounting

Specifications:

• Weight: 15lb (6.8kg)
• Wingspan 65.1″ (1655mm)
• Length 71″ (1805mm) – With Spinner
• Engine  40-50cc 2 Stroke
• Servos: 7x (10kg+) Mini size + 1x Throttle (MG2810HV used in prototype)
• Spinner size: 3.5″
• Wheel size: 3″
• Wing tube Socket size: 21mm OD (Maximum OD)
• (Recommend 20mm OD Aluminum or Carbon wing Tube)

(Engine fitment Note: Due to the scale cowl shape and Depending on engine choice it may be required to run a small propeller hub Extension (10-15mm) to allow the carburetor on most updraft style carburetors engines to clear the cowling and not rub/interfere)

The Short Kit includes:

• Precision Laser cut wooden parts from premium European woods
• CNC Laser cut Stainless steel Top Wing mount & Flying wire mounting set
• 1:1 Scale detailed Printed wing plans + Digital Instructions.
• A comprehensive list of all the Components & Materials required to complete the model.
• Premium GFK Cowling  (Produced from CNC created mold for digital precision, Shape & Symmetry)
• Premium CFK and GFK Main Under carriage
• Lexan Vacuum formed Canopy
• Premium Light weight GFK Wheel Pants

Please note: As each kit is normally manufactured to order, please allow 2-6 weeks for Manufacture and shipping dispatch, With the wood kit being manufactured and shipped first and then Composite parts to follow shortly after

However we will keep you updated at each stage of your kits Production.



Additional Materials & Items List

Build Manual Guide

Top Wing Strut Diagram

Wing Wiring Diagram
